Cooperation with Rexroth twice from 1979, Huade has incorporated cutting-edge technology from Rexroth. Huade brand WE 5 directional spool valve is an affordable alternative to the same model offered by Rexroth. Huade operates more than 750 pieces production equipment imported from US, Japan, Germany and Switzerland. Huade puts great stress on the quality to ensure that every directional valve has superior performance. The solenoid directional valve series has passed CE certification. R&D and production management system meets ISO9001, ISO14001, and ISO45001. Huade brand hydraulic valves are widely used in the military industry and other fields in China due to stable performance.

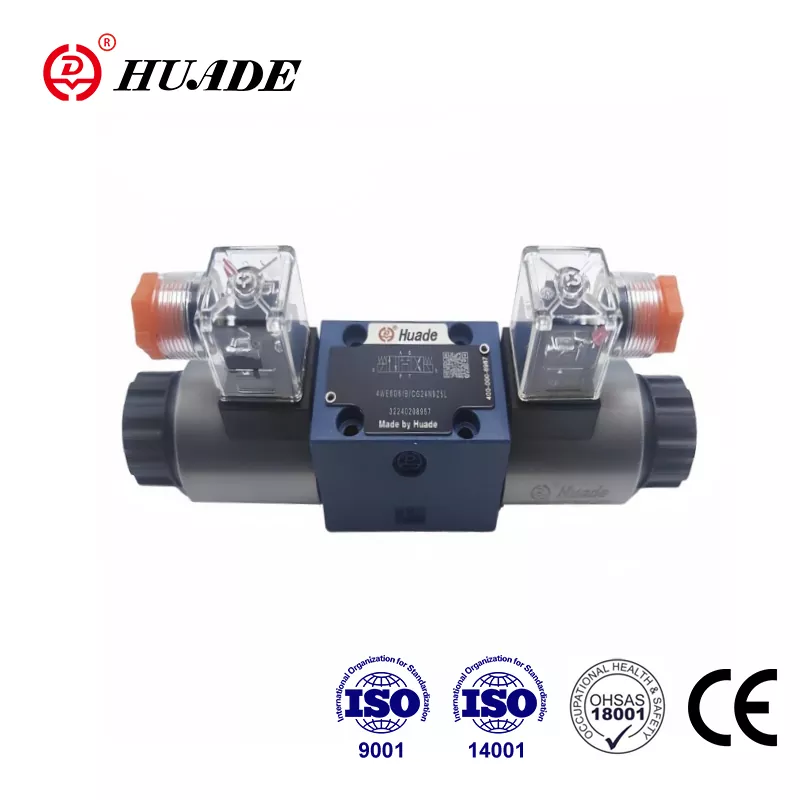

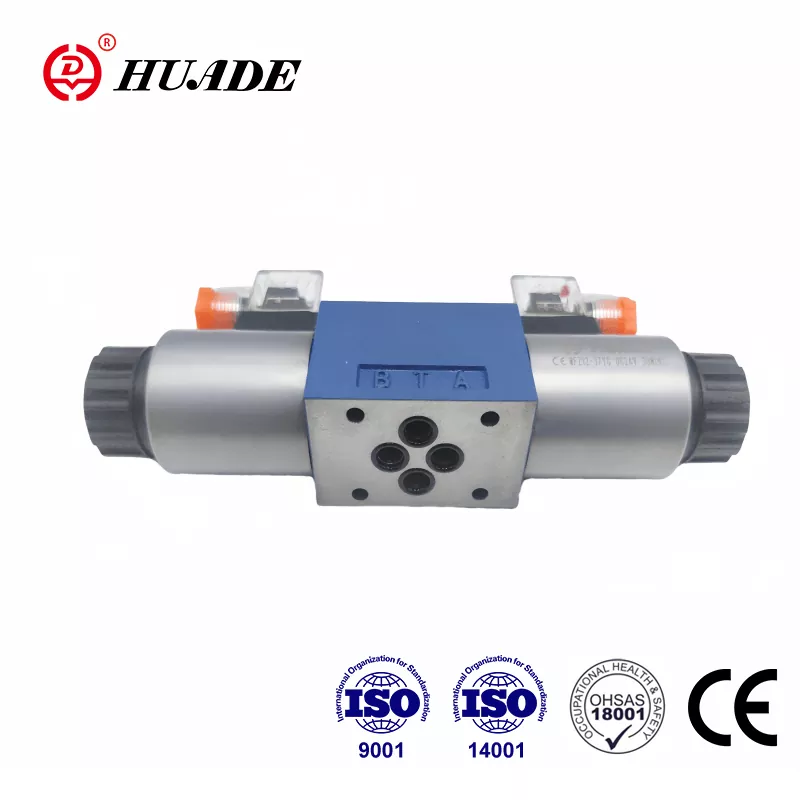

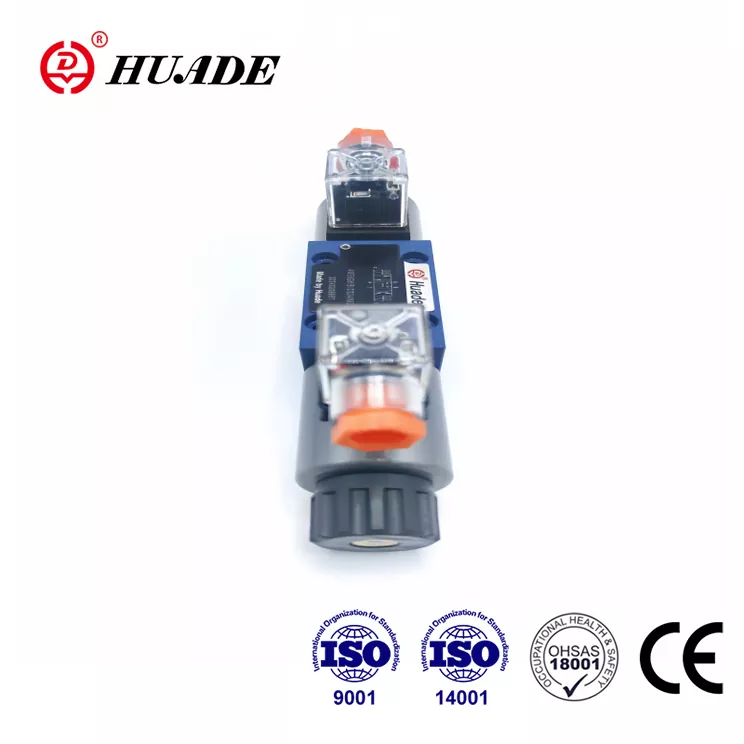

Directional Control Valve WE 5 for Rexroth
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth DIRECTIONAL-CONTROL-VALVE-WE-5-FOR-REXROTH equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features: Direct solenoid actuated, Rexroth-compatible design, wet pin DC/AC solenoids, CE certified
• Specifications: Operating pressure up to 25MPa, temperature range -30~+80°C, AC/DC voltage options
• Applications: Hydraulic system flow control, pilot valves for pressure control, military and industrial applications
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Direct solenoid actuated directional spool valve
- Wet pin DC or AC solenoids
- Subplate connection
Industrial Applications
- Directional valves of type WE5 are solenoid operated directional spool valves. They control the start, stop and direction of a fluid. This valve is widely used in various hydraulic systems and pilot valves of various pressure valves.
- These directional valves basically consist of the housing (1), one or two solenoids (2), the control spool (3), and one or two return springs(4).
- The control spool (3) is held by the return spring (4) in the central or in the initial position (except for detented spools). The control spool (3) is actuated via wet pin solenoids (2). In the energized condition. The force of the solenoid (2) acts via the plunger (5) on the control spool (3) and shifts the same from its rest position to the desired end position. Thus, the required flow pattern from P to A and B to T or P to B and A to T is selected. When the solenoid (2) is de-energized, the control spool (3) is returned to its neutral position by the return spring (4). A covered manual override is provided so that the control spool (3)can be operated without energizing the solenoid.
- Type 4WE5N 6.0B/O...
- This version is a directional valve with 2 switching positions and 2 solenoids without detent and springs. There is no defined switching position in the de-energized condition.
- Type 4WE5N 6.0B/OF..
- This version is a directional valve with 2 switching position, 2 solenoids and a detent. Thus, the relevant switching positions are fixed and continuous energization of the solenoid is not necessary.
- Structure diagram of WE 5
Technical Parameters
Mechanical ratings and operating limits for the Directional Control Valve WE 5 for Rexroth:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Hydraulic data | Hydraulic data |
| Hydraulic fluid - mineral oils or phosphate ester | mineral oils or phosphate ester |
| Fluid temperature range - -30～+80 | -30～+80 |
| Viscosity range (mm2/s) - 2.8 to 500 | 2.8 to 500 |
| Operating pressure, max. (㎫) - Port A,B,P - Port T | Port T |
| Operating pressure, max. (㎫) - up to 25 - up to 6 | up to 6 |
| Flow area (switching position 0): - With symbol W - With symbol Q | With symbol Q |
| Flow area (switching position 0): - approx. 3%of nominal cross section - approx.6% of nominal cross section | approx.6% of nominal cross section |
| Weight (kg) - valve - subplate G115/01 | subplate G96/01 |
| Weight (kg) - approx.1.4 - approx.0.7 | approx.0.5 |
| Electrical data | Electrical data |
| AC Voltage (V) - 110， 220，in 50Hz | 110， 220，in 50Hz |
| DC Voltage (V) - 12、 24、 110 | 12、 24、 110 |
| Voltage type - AC - DC | DC |
| Holding power (VA) - - - 46 | 46 |
| Switch-on power (VA) - - - 130 | 130 |
| Duty cycle - continue | continue |
| Switching time ON (ms) - 40 - 25 | 25 |
| Switching time OFF (ms) - 30 - 20 | 20 |
| Environment temperature（℃） - +50 | +50 |
| Coil temperature （℃） - +150 | +150 |
| Switching frequency cycles (cycles/h) - 15000 - 7200 | 7200 |
| Type of protection to DIN 40 050 - IP65 | IP65 |
